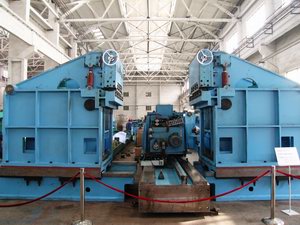

Edge Milling Machine
STRIP EDGE MILLER /  EDGE PLANER

Strip material: up to API 5L X-80
Strip width: up to 2000mm
Strip thickness: up to 19mm
Milling speed: up to 30m/min

Edge Milling Machine is driven by AC motor, comprising of gear transmission device, pedestal, left & right sliding seats, cutter head, cutter adjustment mechanism and chip removal device.

Milling groove forms: I, X and Y groove;
Max milling amount of a single edge: I-shape groove: ≤15mm;
X and Y shape groove: ≤8mm
Milled steel strip tolerance: 0-1mm;
Roughness degree of milled steel strip surface: ≤50μm;
Run-out value of end face of milled steel strip: ≤50μm;
Work mode: dry-type consecutive milling;
Angle adjustment scope of cutter head: 0-15°;
