Forming Press
1. Brief introduction

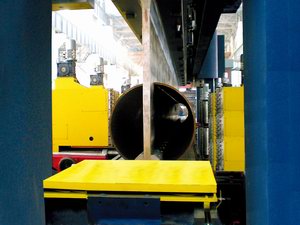

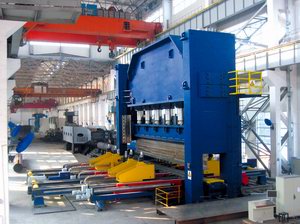

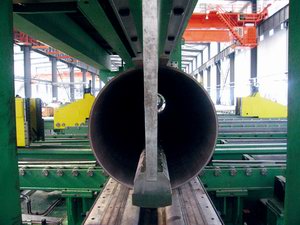

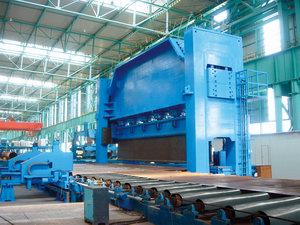

CNC Pipe Press Brake PPF6500/135 has a nominal force of 65,000kN, with distance of 13,500mm between two uprights, and with bending length of 13000mm. The machine is composed of 7 axes CNC controlled main machine, 2-axes CNC controlled sheet feeding unit, front and back sheet supporting rack, roller conveyer, side extraction, tooling and a CNC Control system. The ram is driven by 6 synchronized cylinders with the positioning accuracy 0.05mm and repeat position accuracy 0.03mm. Various functions such as automatic feeding, bending and forming, and automatic pipe extraction etc. can be achieved on it.

2. Technical Specifications of Main Machine
Descriptions
Value
Unit
Remarks
Nominal Force
65000
kN

Obverse Distance between the Uprights
13500
mm

Pipe length
8000~13000
mm

Max. pipe length
250+13000+250

Including run-on plate
Blank Distance between the Uprights
1700
mm

Bending diameter
Φ406-1524
mm

Bending thickness
See below
mm

Qty of Main Cylinders
6
pcs

Stroke of Ram
350
mm

Positioning Accuracy of Ram
0.05
mm

Repeatability of Ram
0.03
mm

Approach Speed
60
mm/s

Working Speed
10
mm/s

Return Speed
75
mm/s

Max. working pressure
27.5
MPa

Power
940
kW
Including auxiliaries
Weight (approx.)
1250,000
kg
Including auxiliaries


3. Processing Capacity
Diameter
Wall Thickness(mm)
inch
mm
6
8
10
12
14
16
18
20
26
28
30
32
34
36
38
40
42
44
20
406


















24
610


















28
711


















32
813


















36
914


















40
1016


















44
1118

X80 σs≤690MPa










48
1219











52
1321


















56
1422



















4. Productivity
up to 14 pipes of 12m long per hour  for 16" and even 20" diameter.
