Pipe Heat Treatment
PIPE HEATTREATMENT (QUENCHING FACILITY, QUENCHING & TEMPERAING FURANCE)

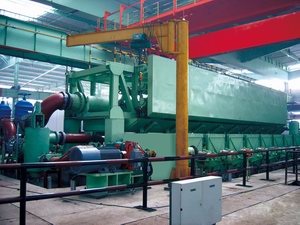

Steel pipes heated by the quenching furnace are transferred to standby position of the discharging rollway; the charging device lifts the steel pipes and overturns it on stabilizing wheel of the rotating device for low speed rotation; clamping cylinder mounted on the spray framework quickly clamps the steel pipe and rotates it. Outer spray nozzle on the framework uniformly sprays water on external surface of the steel pipe; Meanwhile cone spray nozzle approaching the steel pipe butt end sprays water to interior of the steel pipe, therefore internal and external surface of the steel pipe have be made the quench treatment. Steel pipes after the quenching are delivered to the stop gauge through the transition reverse turning bed and the sloping bench; Reverse turning bed of the stop gauge rotates and reverses steel pipes on the water drainage bracket one by one; Steel pipes after the water drainage will be delivered to feeding rollway of the tempering furnace again through the sloping bench to complete the total quenching process.

Inner spray water enters the reservoir via the tee valve in case of non-quenching, and outer spray water is also collected into the drainpipe via the water eliminator and then returned to the reservoir.


Part of reference list for tube heat treatment
S/N
Description
Product Specfication
Clients
Description
1
Oil quenching device
Ø48.3×3.86-Ø139.7×10.54
Shengli Oil Field M. Office machinery fac.
Nov 2001
2
Oil quenching device
Ø60.3×4.83-Ø139.7×10.54
Tianjin Pipe Corporation
May 2003
3
Water quenching device
Ø60.3×4.83-Ø244.5×15.47
Baotou Steel Group Cont. Rolling Mill
Jul 2004
4
Complex quenching device
Ø139.7×6.2-Ø426×40
Pangang Chengdu Steel Corp Pipe CO.
Mar 2006
5
Water quenching device
Ø219.08×7.35-Ø533.4×57
Tianjin Pipe Corporation
Jul 2006
6
Quenching device
Ø139.7×6.2-Ø370×40
Hengyang Hualing Steel Pipe MPM plant
Jul 2006
7
Water quenching device
Ø60.3×4.38-Ø219.08×15.1
Tianda Special tube Group
Dec 2006
8
Water quenching device
Ø60.3×4.38-Ø139.7×10.54
Jiangsu Changbao Pipe Corp Ltd.
Dec 2006
9
Water quenching device
Ø60.3×4.38-Ø244.5×15.17
Hengyang Hualing Steel Pipe MPM plant
Jan 2007
10
Water quenching device
Ø60.3×4.38-Ø139.7×10.54
Liaohe Oil Field
Sep 2007
11
Water quenching device
Ø60.3×4.38-Ø219.08×15.1
Changbao Pulaishen Tube Co. Ltd.
Apr 2008
12
Heat treatment line
Ø60.3×4.38-Ø219.08×15.1
Anshan Steel Seamless Tube Plant
Dec 2008
13
Heat treatment line
Ø60.3×4.38-Ø219.08×15.1
Jindal SAW, India
Feb 2009
14
Heat treatment line
Ø60.3×25-Ø203×50
Hubei Xinye Seamless Tube Plant
May 2008
15
Quenching inside trough device
Ø101.6×5.0-Ø273×35
Pangang Chengdu No. 3 Tube Plant
Mar 2009
16
Water quenching device
Ø101.6×5-Ø273×18
Pangang Chengdu No. 3 Tube Plant
Mar 2009
17
Quenching inside trough device
Ø108×5.0-Ø273×55
Tianjin Pipe Corporation
Mar 2009
18
Water quenching device
Ø60.3×4.83-Ø219×22
Shandong Luxing Pipe Corp.
under man.
19
Water quenching device
Ø139.7×7.72-Ø339.7×40
Tianda Special tube Group
under man.
20
Water quenching device
Ø139.7×7.72-Ø339.7×40
Jiangyin Changjiang Oil Tube Co. Ltd.
under man.
21
Water quenching device
Ø60.3×4.83-Ø273×25
Hebei Litonglian Seamless Tube Co.
under desi.
