Uncoiler

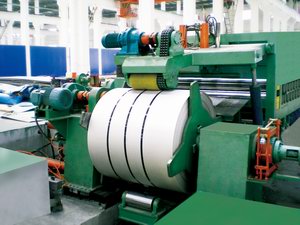

KJ Series uncoiler belongs to the entrance section of ERW tube mill. It is used to support and open the steel coil and then feed the strip into the flattener and shear welder.
 |
 |
Models of uncoiler:
|
Type
|
Width (mm)
|
Thickness (mm)
|
Coil ID (m)
|
Coil OD. (mm)
|
Weight (mt)
|
Structure
|
|
KJ32
|
40-120
|
0.6-1.6
|
420-620
|
Max. 1600
|
Max. 1.5
|
Double
|
|
KJ50
|
60-200
|
0.9-2.0
|
420-620
|
Max. 1600
|
Max. 1.8
|
Double
|
|
KJ76
|
100-260
|
1.2-3.5
|
420-620
|
Max. 1800
|
Max. 5.0
|
Single
|
|
KJ89
|
100-300
|
1.75-4.0
|
450-550
|
Max. 1800
|
Max. 5.0
|
Single
|
|
KJ114
|
120-400
|
2.0-6.0
|
450-550
|
Max. 2000
|
Max. 7.5
|
Single
|
|
KJ165
|
160-520
|
2.5-7.0
|
450-550
|
Max. 2000
|
Max. 10.0
|
Single
|
|
KJ219
|
240-700
|
3.5-7.0
|
450-550
|
Max. 2000
|
Max. 10.0
|
Single
|
|
KJ273
|
320-900
|
4.0-10.0
|
450-550
|
Max. 2000
|
Max. 15.0
|
Single
|
|
KJ325
|
500-1100
|
5.0-12.7
|
580-760
|
Max. 2000
|
Max. 25.0
|
Double
|
|
KJ406
|
600-1300
|
5.0-14.0
|
580-760
|
Max. 2200
|
Max. 25.0
|
Double
|
|
KJ508
|
700-1650
|
6.0-16.0
|
610-760
|
Max. 2200
|
Max. 35.0
|
Double
|
|
KJ630
|
900-2000
|
6.0-22.0
|
780-860
|
Max. 2200
|
Max. 40.0
|
Double
|
