Strip Flattener

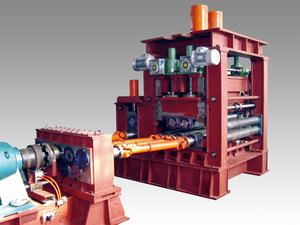

JP Series Flattener is used to flatten the head and tail of the strip and drive the strip forward to shear welder and provide support for shear welder.
Pinch roll: 2-roll, upper roll driven up and down by hydraulic cylinder
Leveling roll: 5 (2 top and 3 bottom), upper roll driven up and down by hydraulic cylinder; fine adjustment for upper roll: motor driven, automatic adjustment is possible.
Composition:
Driving device, pinch roll, flattening device, electric control and hydraulic system (share the hydraulic system with uncoiler)
 |
 |
Models for flattener
|
Type
|
Width (mm)
|
Thickness (mm)
|
Speed (m/min)
|
Structure
|
|
JP32
|
40-120
|
0.6-1.6
|
15
|
5(7)roller
|
|
JP50
|
60-200
|
0.9-2.0
|
12
|
5(7)roller
|
|
JP76
|
100-260
|
1.2-3.5
|
12
|
5(7)roller
|
|
JP89
|
100-300
|
1.75-4.0
|
8
|
5(7)roller
|
|
JP114
|
120-400
|
2.0-6.0
|
8
|
5(7)roller
|
|
JP165
|
160-520
|
2.5-7.0
|
6
|
5(7)roller
|
|
JP219
|
240-700
|
3.5-7.0
|
6
|
5(7)roller
|
|
JP273
|
320-900
|
4.0-10.0
|
6
|
5(7)roller
|
|
JP325
|
500-1100
|
5.0-12.7
|
6
|
5(7)roller
|
|
JP406
|
600-1300
|
5.0-14
|
6
|
5(7)roller
|
|
JP508
|
700-1650
|
6.0-16.0
|
6
|
5(7)roller
|
|
JP603
|
900-2000
|
6.0-22.0
|
6
|
5(7)roller
|

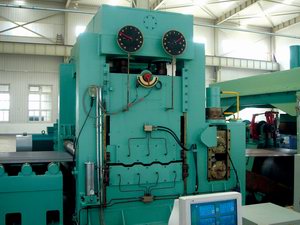

Typical reference list for KJ – Uncoiler, JP – Flattener
|
S/N
|
P/N
|
Strip Spec
|
Client
|
Delivered
|
|
46
|
KJ406
|
1350×12.7mm
|
Conares Metal Supply, UAE
|
2009.1
|
|
45
|
JP406
|
1350×12.7mm
|
Conares Metal Supply, UAE
|
2009.1
|
|
44
|
KJ273
|
1000x10mm
|
IGM-TRADE Ilija i Dr.D.O.O., Macedonia
|
2008.11
|
|
43
|
JP273
|
1000x10mm
|
IGM-TRADE Ilija i Dr.D.O.O., Macedonia
|
2008.11
|
|
42
|
KJ165
|
550×6mm
|
Shangang Group
|
2008.10
|
|
41
|
JP165
|
550×6mm
|
Shangang Group
|
2008.10
|
|
40
|
KJ355
|
1100×16mm
|
Tangshan Wenfeng Qiyuan Pipe Co., Ltd.
|
2008.12
|
|
39
|
JP355
|
1100×16mm
|
Tangshan Wenfeng Qiyuan Pipe Co., Ltd.
|
2008.12
|
|
38
|
KJ114
|
400×5mm
|
Uzbekistan
|
2008.6
|
|
37
|
JP114
|
400×5mm
|
Uzbekistan
|
2008.6
|
|
36
|
KJ114
|
380×10mm
|
Tianjin Youfa Pipe Com. Ltd.
|
2007.10
|
|
35
|
JP114
|
380×10mm
|
Tianjin Youfa Pipe Com. Ltd.
|
2007.10
|
|
34
|
KJ114
|
380×10mm
|
Tianjin Lifengyuanda Pipe Com. Ltd.
|
2007.7
|
|
33
|
JP114
|
380×10mm
|
Tianjin Lifengyuanda Pipe Com. Ltd.
|
2007.7
|
|
32
|
KJ355
|
1200×12.7mm
|
JiangsuJiabao Technology Pipe Com. Ltd.
|
2007.9
|
|
31
|
JP355
|
1200×12.7mm
|
JiangsuJiabao Technology Pipe Com. Ltd.
|
2007.9
|
|
30
|
KJ140
|
520×7mm
|
JiangsuJiabao Technology Pipe Com. Ltd.
|
2007.9
|
|
29
|
JP140
|
520×7mm
|
JiangsuJiabao Technology Pipe Com. Ltd.
|
2007.9
|
|
28
|
KJ254
|
800×10mm
|
Shijiazhuang Zhongtai Pipe Tech Com. Ltd.
|
2007.6
|
|
27
|
JP254
|
800×10mm
|
Shijiazhuang Zhongtai Pipe Tech Com. Ltd.
|
2007.6
|
|
26
|
KJ140
|
400×5.5mm
|
Tianjin Shuangjie Pipe Com. Ltd.
|
2007.4
|
|
25
|
KJ219
|
700×8mm
|
Dalian Sirite High TechCom. Ltd.
|
2007.5
|
|
24
|
JP219
|
700×8mm
|
Dalian Sirite High TechCom. Ltd.
|
2007.5
|
|
23
|
KJ219
|
700×8mm
|
Wuxi HuanhuanPipe Com. Ltd.
|
2006.11
|
|
22
|
JP219
|
700×8mm
|
Wuxi HuanhuanPipe Com. Ltd.
|
2006.11
|
|
21
|
KJ219
|
700×10mm
|
Tianjin Lifengyuanda Steel Com. Ltd.
|
2006.1
|
|
20
|
JP219
|
700×10mm
|
Tianjin Lifengyuanda Steel Com. Ltd.
|
2006.1
|
|
19
|
KJ355
|
1200×14mm
|
Wuxi FAST Tube Com. Ltd.
|
2006.8
|
|
18
|
JP355
|
1200×14mm
|
Wuxi FAST Tube Com. Ltd.
|
2006.8
|
|
17
|
SY1100
|
Φ1100×22mm
|
BUMIKAYA Steel, Indonesia
|
2005.11
|
|
16
|
KJ114
|
360×5mm
|
Kuming Steel Yuxi Project
|
2006.3
|
|
15
|
JP114
|
360×5mm
|
Kuming Steel Yuxi Project
|
2006.3
|
|
14
|
KJ165
|
700×7mm
|
Kuming Steel Yuxi Project
|
2006.4
|
|
13
|
JP165
|
700×7mm
|
Kuming Steel Yuxi Project
|
2006.4
|
|
12
|
KJ165
|
550×8mm
|
Shangdong Zaozhuang Coal Mine Pipe Com. Ltd.
|
2005.4
|
|
11
|
JP165
|
550×8mm
|
Shangdong Zaozhuang Coal Mine Pipe Com. Ltd.
|
2005.4
|
|
10
|
KJ165
|
550×8mm
|
Qingdao Pipe Com. Ltd.
|
2004.12
|
|
9
|
JP165
|
550×8mm
|
Qingdao Pipe Com. Ltd.
|
2004.12
|
|
8
|
KJ273
|
860×9mm
|
Guangdong Zhongshan Huajie Pipe Com. Ltd.
|
2004.11
|
|
7
|
JP273
|
860×9mm
|
Guangdong Zhongshan Huajie Pipe Com. Ltd.
|
2004.11
|
|
6
|
KJ114
|
520×6mm
|
Tangshan Lida Pipe Com. Ltd.
|
2004.11
|
|
5
|
JP114
|
520×6mm
|
Tangshan Lida Pipe Com. Ltd.
|
2004.8
|
|
4
|
KJ114
|
360×6mm
|
Hebei Shengfang Shengbao Steel Tube Factory
|
2002.12
|
|
3
|
JP114
|
360×6mm
|
Hebei Shengfang Shengbao Steel Tube Factory
|
2002.12
|
|
2
|
KJ254
|
800×8mm
|
Hebei Shengfang Shengbao Steel Tube Factory
|
2002.12
|
|
1
|
JP254
|
800×8mm
|
Hebei Shengfang Shengbao Steel Tube Factory
|
2002.12
|
