Strip Accumulator

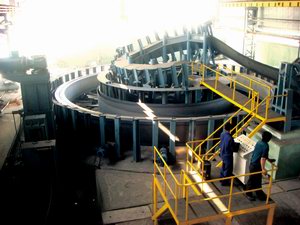

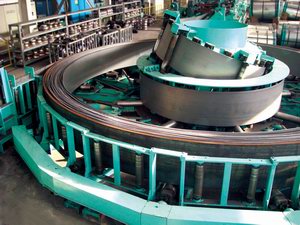

STRIP SPIRAL ACCUMULATOR
The main function of accumulator is to accumulate steel strip to keep the tube mill operating in a non-stop way. The features of our accumulator:
Reasonable structure;
Novel design;
Precise and advanced spiral path;
High capacity;
No scratch to strip;
No loop swelling
No loop retracting
low power consumption
Easy operation
No strip alarming and length measuring
Structure:
Feed in from outside cage and output from the centre;
Fixed loops / variable loops;
Plate type / roll type
Control:
DC drive / AC inverter
Central / individual
Output:
Pulled out by forming mill or synchronized driven rolls
It consists of turning device for feeding materials, pinch device, accumulating part, turning device for output materials, transmission device, control system, operation console, etc.
 |
 |
Models for spiral strip accumulator
|
Type
|
Width (mm)
|
Thickness (mm)
|
Storage (m)
|
Out speed (m/min)
|
Occupied L (m)
|
|
WLHT32
|
40-120
|
0.6-1.6
|
400-600
|
Mill speed
|
7
|
|
WLHT50
|
60-200
|
0.9-2.0
|
400-700
|
Mill speed
|
10
|
|
WLHT76
|
100-260
|
1.2-3.5
|
400-700
|
Mill speed
|
14
|
|
WLHT114
|
120-400
|
2.0-6.0
|
400-800
|
Mill speed
|
18
|
|
WLHT165
|
160-520
|
2.5-7.0
|
400-800
|
Mill speed
|
20
|
|
WLHT219
|
240-700
|
3.5-7.0
|
400-900
|
Mill speed
|
28
|
|
WLHT273
|
320-900
|
4.0-10.0
|
400-900
|
Mill speed
|
38
|
|
WLHT325
|
500-1100
|
5.0-12.7
|
500-1000
|
Mill speed
|
45
|
|
WLHT406
|
600-1300
|
5.0-14.0
|
500-1000
|
Mill speed
|
45
|
|
WLHT508
|
700-1650
|
6.0-16.0
|
500-1200
|
Mill speed
|
57
|
|
WLHT630
|
900-2000
|
6.0-22.0
|
500-1200
|
Mill speed
|
60
|
Typical reference list for WLHT Horizontal Spiral Accumulator
For domestic Market
|
S/N
|
P/N
|
Qtty
|
Strip Spec.
|
Client
|
Delivered
|
|
58
|
WLHT355
|
1
|
1100×16mm
|
Tangshan Wenfeng Qiyuan Pipe Co., Ltd.
|
2008.12
|
|
57
|
WLHT254
|
1
|
800×10mm
|
Tianjin Xingqiang Tube Com., Ltd.
|
2007.12
|
|
56
|
WLHT114
|
1
|
380×10mm
|
Tianjin Youfa Pipe Com. Ltd.
|
2007.10
|
|
55
|
WLHT273
|
1
|
860×10mm
|
Lianyungang Jinchang Special Steel Co., Ltd.
|
2007.08
|
|
54
|
WLHT219
|
1
|
700×8mm
|
JiangsuHuajia Precision Pipe Com. Ltd.
|
2007.09
|
|
53
|
WLHT273
|
1
|
960×9.5mm
|
Shijiazhuang Forever Machinery Com. Ltd.
|
2007.08
|
|
52
|
WLHT114
|
1
|
380×10mm
|
Tianjin Lifengyuanda Pipe Com. Ltd.
|
2007.07
|
|
51
|
WLHT355
|
1
|
1200×12.7mm
|
JiangsuJiabao Technology Pipe Com. Ltd.
|
2007.09
|
|
50
|
WLHT140
|
1
|
520×7mm
|
JiangsuJiabao Technology Pipe Com. Ltd.
|
2007.09
|
|
49
|
WLHT140
|
1
|
400×5.5mm
|
Tianjin Shuangjie Pipe Com. Ltd.
|
2007.04
|
|
48
|
WLHT219
|
1
|
700×8mm
|
Dalian Sirite High Tech Com. Ltd.
|
2007.05
|
|
47
|
WLHT400
|
1
|
1400×14mm
|
Shanghai Hengyuan Metallurgical Equip. Co
|
2007.06
|
|
46
|
H Beam
|
3
|
400×200×9mm
|
Inductotherm (Shanghai) Com. Ltd.
|
2007.04
|
|
45
|
WLHT406
|
1
|
1200×13.7mm
|
Shangdong Yuding Tube Com. Ltd.
|
2007.05
|
|
44
|
WLHT254
|
1
|
800×10mm
|
Shangdong Yuding Tube Com. Ltd.
|
2007.05
|
|
43
|
WLHT254
|
1
|
840×10mm
|
JiangsuLiulong Pipe Com. Ltd.
|
2007.03
|
|
42
|
WLHT114
|
1
|
360×6.75mm
|
Huludao Qixing Steel Tube Group Com. Ltd.
|
2006.11
|
|
41
|
WLHT219
|
1
|
700×8mm
|
Wuxi HuanhuanPipe Com. Ltd.
|
2006.11
|
|
40
|
WLHT165
|
1
|
550×6.5mm
|
Wuxi Fangda Pipe Com. Ltd.
|
2006.09
|
|
39
|
WLHT219
|
1
|
1000×3.5mm
|
Wuxi Huafeng Steel Sheet Com. Ltd.
|
2006.10
|
|
38
|
WLHT219
|
1
|
700×10mm
|
Tianjin Lifengyuanda Steel Com. Ltd.
|
2006.10
|
|
37
|
WLHT219
|
1
|
700×6.5mm
|
Shijiazhuang Zhongtai Equipment Com. Ltd.
|
2006.10
|
|
36
|
WLHT273
|
1
|
1250×12.7mm
|
Shijiazhuang Zhongtai Equipment Com. Ltd.
|
2006.10
|
|
35
|
WLHT355
|
1
|
1150×14mm
|
Huludao Qixing Steel Tube Group Com. Ltd.
|
2006.08
|
|
34
|
WLHT355
|
1
|
1200×14mm
|
Wuxi FAST Tube Com. Ltd.
|
2006.08
|
|
33
|
WLHT273
|
1
|
1250×12.7mm
|
Tianjin Lianzhong Pipe Com. Ltd.
|
2006.02
|
|
32
|
WLHT254
|
1
|
840×10mm
|
Wuxi Dalu Pipe Com. Ltd.
|
2006.05
|
|
31
|
WLHT114
|
1
|
360×5mm
|
Kuming Steel Yuxi Project
|
2006.03
|
|
30
|
WLHT165
|
1
|
700×7mm
|
Kuming Steel Yuxi Project
|
2006.04
|
|
29
|
WLHT273
|
1
|
860×10mm
|
Tianjin Longbao Pipe Com. Ltd.
|
2006.02
|
|
28
|
WLHT273
|
1
|
860×12.7mm
|
Tianjin Zhongshun Commerce Com. Ltd.
|
2006.02
|
|
27
|
WLHT219
|
1
|
700×8 mm
|
Tianjin Lianfeng Pipe Com. Ltd.
|
2005.12
|
|
26
|
WLHT273
|
1
|
1250×12.7mm
|
Shangdong Shengli Pipe Com. Ltd.
|
2005.08
|
|
25
|
WLHT377
|
1
|
850×8mm
|
Shangdong Shengli Pipe Com. Ltd.
|
2005.08
|
|
24
|
WLHT508
|
1
|
1650×16mm
|
North China Petroleum Qingxian Pipe Ltd.
|
2005.08
|
|
23
|
WLHT273
|
1
|
860×9mm
|
Guangdong Zhongshan Huajie Pipe Com. Ltd.
|
2004.12
|
|
22
|
WLHT325
|
1
|
1250×12.7mm
|
Hengshui Jinghua Pipe Com. Ltd.
|
2004.05
|
|
21
|
WLHT273
|
1
|
850×8mm
|
Tianjin Sinosteel Metallurgical Equipment Com.
|
2004.04
|
|
20
|
WLHT165
|
1
|
520×6mm
|
Tianjin Sinosteel Metallurgical Equipment Com.
|
2004.03
|
|
19
|
WLHT377
|
1
|
1200×12.5mm
|
Kuming Steel Profile Com. Ltd.
|
2004.01
|
|
18
|
WLHT219
|
1
|
700×8mm
|
Kuming Steel Profile Com. Ltd.
|
2003.12
|
|
17
|
WLHT254
|
1
|
800×8mm
|
Shengfang Shengbao Pipe Com. Ltd.
|
2003.12
|
|
16
|
WLHT165
|
1
|
550×8mm
|
Wuxi Sujia Pipe Com. Ltd.
|
2003.11
|
|
15
|
WLHT165
|
1
|
550×8mm
|
Qingdao Pipe Com. Ltd.
|
2003.11
|
|
14
|
WLHT165
|
1
|
550×6mm
|
Jiangyin Steel Tube Factory
|
2003.11
|
|
13
|
WLHT165
|
1
|
550×6mm
|
Shengfang Shengbao Pipe Com. Ltd.
|
2003.06
|
|
12
|
WLHT325
|
1
|
1270×11mm
|
Tianjin Hongli Group
|
2002.10
|
|
11
|
WLHT325
|
1
|
1270×12.7mm
|
Tianjin Shuangjie Steel Tube Factory
|
2002.03
|
|
10
|
WLHT219
|
1
|
850×10mm
|
Lingyuan Steel Tube Group Com.
|
2002.01
|
|
9
|
WLHT219
|
1
|
600×8mm
|
Hengshui Jinghua Pipe Group Com.
|
1998.05
|
|
8
|
WLHT165
|
1
|
550×8mm
|
Gulin Leipishan Prison
|
1996.01
|
|
7
|
WLHT406
|
1
|
1370×12.7mm
|
Anshan Hongyuan Steel Tube Factory
|
1995.10
|
|
6
|
WLHT165
|
1
|
550×8mm
|
Wuxi Electric Furnace Factory
|
1995.11
|
|
5
|
WLHT165
|
1
|
550×8mm
|
Hengshui Jinghua Pipe Group Com.
|
1995.11
|
|
4
|
WLHT219
|
1
|
850×10mm
|
Hangzhou Heavy Pipe Making Factory
|
1995.09
|
|
3
|
WLHT219
|
1
|
850×10mm
|
PUMIKAYA, Indonesia
|
1994.09
|
|
2
|
WLHT165
|
1
|
550×8mm
|
Tangshan Steel Coil Plant
|
1995.06
|
|
1
|
WLHT165
|
1
|
550×8mm
|
Shangdong Zhangdian Steel Tube Factory
|
1994.08
|
For International Market
|
S/N
|
P/N
|
Qtty
|
Strip
|
Clients
|
Delivered
|
|
19
|
WLHT406
|
1
|
1350×12.7mm
|
Conares Metal Supply UAE
|
2009.01
|
|
18
|
WLHT50
|
1
|
160×3.75mm
|
Conares Metal Supply UAE
|
2008.11
|
|
17
|
WLHT273
|
1
|
1000X10mm
|
IGM-TRADE Ilija i Dr.D.O.O., Macedonia
|
2008.11
|
|
16
|
H-beam(610)
|
1
|
610×9mm
|
Columbia
|
2008.10
|
|
15
|
H-beam(500)
|
3
|
500×9（12）mm
|
Columbia
|
2008.10
|
|
14
|
WLHT273
|
1
|
800×10mm
|
Russia
|
2008.07
|
|
13
|
WLHT610
|
1
|
2000×19mm
|
South African
|
2008.07
|
|
12
|
WLHT165
|
1
|
520×7mm
|
Umran Turkey
|
2008.04
|
|
11
|
WLHT406
|
1
|
1350×12.7mm
|
Umran Turkey
|
2008.02
|
|
10
|
WLHT508
|
1
|
1630×14.3mm
|
Jindal India Limited
|
2008.03
|
|
9
|
WLHT406
|
1
|
1270×12.7mm
|
Thailand
|
2007.10
|
|
8
|
WLHT76
|
1
|
240×4mm
|
Nigeria
|
2007.08
|
|
7
|
WLHT76
|
1
|
240×4mm
|
Mexico
|
2007.07
|
|
6
|
WLHT50
|
1
|
160×3.5mm
|
Mexico
|
2007.07
|
|
5
|
WLHT76
|
1
|
240×4mm
|
Uzbekistan
|
2006.12
|
|
4
|
WLHT76
|
2
|
240×4mm
|
Thailand
|
2005.05
|
|
3
|
WLHT114
|
2
|
360×5mm
|
Thailand
|
2005.05
|
|
2
|
WLHT114
|
3
|
360×6mm
|
USA
|
1999.04
|
|
1
|
WL HT219
|
1
|
700×8mm
|
Indonesia
|
1994.09
|
