Electric Control System
Motor Control and Full Line Control System

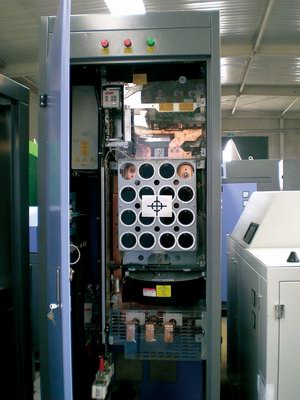

DC drive panel
AC inverter panel

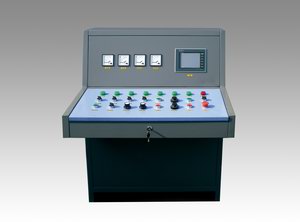

Full line control system

The complete line electric control system shall utilize Siemens PLC, I/O, PROFIBUS, DC drives / AC inverters and HF welder control system to form PROFIBUS-DP automatic communication and control system, which can satisfy the full line automatic and manual production requirements, individual drive and link synchronizing drive control, and monitoring and diagnosis of the HF welder.
