Pipe Cutoff Machine

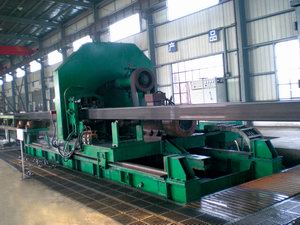

FLYING SAW
XFJ Series Large Size Flying Milling Saw is a large on line equipment which differs from traditional type. The tools can not only perform high-speed rotation cutting, but also travel on the orbit set forth as per the different profiles of the pipes to be cutted. The equipment features in good cut quality, free fo burr, high efficiency and low noise. It specially fit thick all rectangular pipes, round pipes and profiles.
Main specification:
Applicable products: Round pipe, square pipe and rectangular pipe
Materials of applicable products: Q235-345, J55, X42-80, N80
Cutting type: Double saw blades, rotary milling type
Control system: DC drive sytems, AC servo system; PLC control
Equipment function: automatic, manual; on-line setting for long or short pipe
Characteristics: advanced computer software, simplified hardware, stable running, convenient telecommunication, entire network control enabled.
Models for Milling Saw
|
Model
|
Specification
|
Thickness
|
Pipe Length
|
Tolerance
|
Tracking Speed
|
Saw blades
|
Control method
|
Saw length
|
|
(mm)
|
(mm)
|
(m)
|
(mm)
|
(m/min)
|
|
|
(m)
|
|
|
XFJ219
|
Ф89-Ф219
|
3.5-7.0
|
6-12
|
≤±3
|
Max. 40
|
2
|
AC DC
|
9
|
|
XFJ273
|
Ф114-Ф273
|
4.0-10.0
|
6-12
|
≤±3
|
Max. 40
|
2
|
AC DC
|
10
|
|
XFJ325
|
Ф165-Ф325
|
5.0-12.7
|
6-12
|
≤±3
|
Max. 35
|
2
|
AC DC
|
11
|
|
XFJ377
|
Ф165-Ф377
|
5.0-14.0
|
6-15
|
≤±3
|
Max. 35
|
2
|
AC DC
|
11
|
|
XFJ406
|
Ф219-Ф406
|
6.0-16.0
|
6-15
|
≤±3
|
Max. 35
|
2
|
AC DC
|
11
|
|
XFJ508
|
Ф219-Ф508
|
6.0-16.0
|
6-18
|
≤±3
|
Max. 30
|
2
|
AC DC
|
12
|
|
XFJ630
|
Ф219-Ф630
|
6.0-22.0
|
6-18
|
≤±3
|
Max. 30
|
2
|
AC
|
12
|
 |
 |

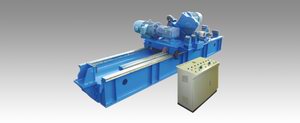

LFJ Series Small Size Cold Saw
Tipped carbide or high speed steel saw blade
Controlled blade feed speed to complete pipe cutoff
Unlike traditional friction saw, the pipe is burr free
Fit for high precision tubes, stainless tubes and general welded tubes.
Models for cold saw
|
Type
|
Specification (mm)
|
Thickness
|
Pipe Length
|
Tolerance
|
Tracking speed
|
Saw blade
|
Control method
|
Saw length
|
|
(mm)
|
(m)
|
(mm)
|
(m/min)
|
|
|
(m)
|
||
|
LFJ32
|
Ф16-Ф32
|
0.6-1.6
|
4-10
|
≤±3
|
Max. 120
|
1
|
AC
|
4.5
|
|
LFJ50
|
Ф20-Ф50
|
0.9-2.0
|
4-10
|
≤±3
|
Max. 100
|
1
|
AC
|
4.5
|
|
LFJ76
|
Ф32-Ф76
|
1.2-3.5
|
5-10
|
≤±3
|
Max. 80
|
1
|
AC
|
5.6
|
|
LFJ89
|
Ф36-Ф89
|
1.75-4.0
|
6-12
|
≤±3
|
Max. 70
|
1
|
AC
|
5.8
|
|
LFJ114
|
Ф50-Ф114
|
2.0-8.0
|
6-12
|
≤±3
|
Max. 60
|
1
|
AC
|
6
|

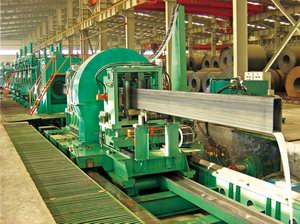

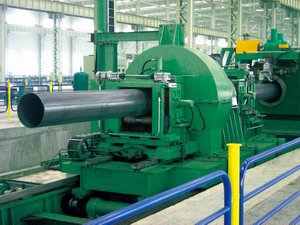

Flying Friction Saw
FJ series Flying Friction Saw serves as the key equipment in the ERW mill and cold rolling mill. It could perform high precision cutting while the pipes and profiles are moving at high speed. It mainly consists of control system, drive system, mechanic body, hydraulic and pneumatic system.
Main specification:
Applicable products: Round pipes, square pipe and rectangular pipe
Materials of applicable products: Q235-345, J55, X42-80, N80
Cutting type: single saw blade swinging type / horizontal movement type
Control system: DC drive, AC servo; AC inverter
Equipment function: automatic, manual; on-line setting for long or short pipe
Characteristics: advanced computer software, simplified hardware, stable running, easy maintenance;
Model for friction saw
|
Type
|
Specification
|
Thickness
|
Tube Length
|
Tolerance
|
Trailing speed
|
actuated by
|
Machine length
|
|
|
(mm)
|
(mm)
|
(m)
|
(mm)
|
(m/min)
|
|
(m)
|
|
FJ32
|
Ф16-Ф32
|
0.6-1.6
|
4-10
|
≤±3
|
Max. 120
|
Pneumatic
|
4.4
|
|
FJ50
|
Ф20-Ф50
|
0.9-2.0
|
4-10
|
≤±3
|
Max. 120
|
Pneumatic
|
4.4
|
|
FJ76
|
Ф32-Ф76
|
1.2-3.5
|
4-10
|
≤±3
|
Max. 80
|
Pneumatic
|
4.8
|
|
FJ89
|
Ф36-Ф89
|
1.75-4.0
|
4-12
|
≤±3
|
Max. 70
|
Pneumatic
|
4.8
|
|
FJ114
|
Ф50-Ф114
|
2.0-6.0
|
4-12
|
≤±3
|
Max. 70
|
Hydraulic
|
4.8
|
|
FJ165
|
Ф60-Ф165
|
2.5-7.0
|
4-12
|
≤±3
|
Max. 60
|
Hydraulic
|
4.8
|
|
FJ219
|
Ф89-Ф219
|
3.5-7.0
|
6-12
|
≤±3
|
Max. 60
|
Hydraulic
|
4.8
|
|
FJ273
|
Ф114-Ф273
|
4.0-10.0
|
6-12
|
≤±3
|
Max. 50
|
Hydraulic
|
4.8
|
|
FJ325
|
Ф165-Ф325
|
5.0-12.7
|
6-12
|
≤±3
|
Max. 40
|
Hydraulic
|
5.6
|
|
FJ377
|
Ф165-Ф377
|
5.0-12.7
|
6-12
|
≤±3
|
Max. 35
|
Hydraulic
|
6
|
|
FJ406
|
Ф219-Ф406
|
5.0-14.0
|
6-15
|
≤±3
|
Max. 35
|
Hydraulic
|
6
|
Flying Saw All Digital Control System
1. Utilizing the world leading 32-bit calculation module capable of nano-second data processing with response speed four times faster than the former module, thus the leap of the control system of cut-off machine from analogue control to digital control realized.
2. Latest coding digital processing technology can improve the precision of encoders by over 10 times.
3. The whole controller is of compact structure with less electron components. SMA technology is adopted for all the core components, making the system more aseismatic and totally free from the potential trouble caused by loose connection.
4. Various communication ports are available for convenient connection and communication with the other equipments.
|
Cold saw
|
 |
Typical reference list for CNC Flying Saw
Friction Chop Saw
|
S/N
|
Specification
|
Client
|
Delivered
|
|
70
|
Φ89×6mm
|
Kunming Steel Group
|
2009.01
|
|
69
|
□250×10mm
|
IGM-TRADE Ilija i Dr.D.O.O., Macedonia
|
2008.11
|
|
68
|
Φ140×8mm
|
Zhangjiagang Haite Tube Co., Ltd.
|
2008.08
|
|
67
|
Φ165×6mm
|
Nanjing Light Industry Machine Co., Ltd.
|
2008.10
|
|
66
|
500×300mm
|
Inductotherm Shanghai
|
2008.10
|
|
65
|
|
Shangdong Yuding Cold Forming Profile Co.
|
2008.08
|
|
64
|
Φ273×10mm
|
Russia
|
2008.07
|
|
63
|
Φ165×7mm
|
Umran Turkey
|
2008.04
|
|
62
|
□200×14mm
|
Shanghai Jialeng Profile Com. Ltd.
|
2007.10
|
|
61
|
Φ114×10mm
|
Tianjin Youfa Pipe Com. Ltd.
|
2007.10
|
|
60
|
□200×10mm
|
Shijiazhuang Changcheng Welded Pipe Ltd.
|
2007.08
|
|
59
|
Φ219×8mm
|
JiangsuHuajia Precision Pipe Com. Ltd.
|
2007.09
|
|
58
|
□150×6mm
|
Wuxi Dalu Pipe Com. Ltd.
|
2007.09
|
|
57
|
Φ114×10mm
|
Tianjin Lifengyuanda Pipe Com. Ltd.
|
2007.07
|
|
56
|
□150×6mm
|
Taiyuan Huaye Equipment Institute
|
2007.05
|
|
55
|
□300×12.7mm
|
Taiyuan Huaye Equipment Institute
|
2007.05
|
|
54
|
□200×10mm
|
Shijiazhuang Zhongtai Pipe Technology Ltd.
|
2007.06
|
|
53
|
400×5.5mm
|
Tianjin Shuangjie Pipe Com. Ltd.
|
2007.04
|
|
52
|
Φ219×8mm
|
Dalian Sirite High Tech Com. Ltd.
|
2007.05
|
|
51
|
400×14mm
|
Shanghai Hengyuan Metallurgical Equip Ltd.
|
2007.06
|
|
50
|
400×200×9mm
|
Inductotherm (Shanghai) Com. Ltd.
|
2007.04
|
|
49
|
□200×10mm
|
Shangdong Yuding Tube Com. Ltd.
|
2007.05
|
|
48
|
□400×14.3mm
|
Tianjin Baicheng Commerce Com. Ltd.
|
2007.04
|
|
47
|
□254×10mm
|
JiangsuLiulong Pipe Com. Ltd.
|
2007.03
|
|
46
|
Φ219×8mm
|
Zhejiang Fusheng Industiral Com. Ltd.
|
2006.12
|
|
45
|
□250×10mm
|
Foshan Sunde Youjun Trading Com. Ltd.
|
2006.12
|
|
44
|
□300×12.7mm
|
JiangsuYulong Steel Tube Co. Ltd.
|
2006.12
|
|
43
|
Φ200×8mm
|
JiangsuYulong Steel Tube Co. Ltd.
|
2006.12
|
|
42
|
Φ219×8mm
|
Wuxi HuanhuanPipe Com. Ltd.
|
2006.11
|
|
41
|
Φ219×10mm
|
Tianjin Lifengyuanda Steel Com. Ltd.
|
2006.10
|
|
40
|
Φ219×6.5mm
|
Shijiazhuang Zhongtai Equipment Com. Ltd.
|
2006.10
|
|
39
|
Φ273×12.7mm
|
Shijiazhuang Zhongtai Equipment Com. Ltd.
|
2006.10
|
|
38
|
Φ355×14mm
|
Huludao Qixing Steel Tube Group Com. Ltd.
|
2006.08
|
|
37
|
Φ254×12.7mm
|
Tianjin Lianzhong Pipe Com. Ltd.
|
2006.02
|
|
36
|
Φ254×10mm
|
Wuxi Dalu Pipe Com. Ltd.
|
2006.05
|
|
35
|
Φ114×5mm
|
Kuming Steel Yuxi Project
|
2006.03
|
|
34
|
Φ219×7mm
|
Kuming Steel Yuxi Project
|
2006.04
|
|
33
|
Φ377×14mm
|
Shanghai Jialeng Profile Com. Ltd.
|
2006.03
|
|
32
|
Φ150×6mm
|
Shanghai Jialeng Profile Com. Ltd.
|
2006.02
|
|
31
|
Φ200×8mm
|
Shanghai Jialeng Profile Com. Ltd.
|
2006.02
|
|
30
|
Φ273×10mm
|
Tianjin Longbao Pipe Com. Ltd.
|
2006.02
|
|
29
|
Φ273×12.7mm
|
Tianjin Zhongshun Commerce Com. Ltd.
|
2006.02
|
|
28
|
Φ219×8 mm
|
Tianjin Lianfeng Pipe Com. Ltd.
|
2005.12
|
|
27
|
Φ250×12mm
|
Wuxi Yulong Pipe Com. Ltd.
|
2005.11
|
|
26
|
Φ426×14mm
|
Haicheng Coating Pipe Com. Ltd.
|
2005.10
|
|
25
|
Φ219×8mm
|
Shangdong Shengli Pipe Com. Ltd.
|
2005.08
|
|
24
|
Φ325×12.7mm
|
Shangdong Shengli Pipe Com. Ltd.
|
2005.08
|
|
23
|
Φ168×8mm
|
Wuxi Yulong Pipe Com. Ltd.
|
2005.01
|
|
22
|
Φ273×9mm
|
Guangdong Zhongshan Huajie Pipe Ltd.
|
2004.12
|
|
21
|
Φ219×8 mm
|
Linyi Xinyuan Pipe Com. Ltd.
|
2004.07
|
|
20
|
Φ325×12.7mm
|
Hengshui Jinghua Pipe Com. Ltd.
|
2004.05
|
|
19
|
Φ377×12.5mm
|
Kuming Steel Profile Com. Ltd.
|
2004.01
|
|
18
|
Φ254×9mm
|
Shengfang Shengbao Pipe Com. Ltd.
|
2003.12
|
|
17
|
Φ325×12mm
|
Changchun Jinheng Commerce Com. Ltd.
|
2003.12
|
|
16
|
Φ140×4mm
|
Kuming Steel Profile Com. Ltd.
|
2003.12
|
|
15
|
Φ219×8mm
|
Kuming Steel Profile Com. Ltd.
|
2003.12
|
|
14
|
Φ355×16mm
|
Baosteel Shanghai Steel Institute
|
2003.12
|
|
13
|
Φ600×10mm
|
WISCO Hankou Steel Rolling Factory
|
2003.04
|
|
12
|
Φ165×8mm
|
Hengshui Jinghua Pipe Group Com.
|
2002.10
|
|
11
|
Φ219×10mm
|
Lingyuan Steel Tube Group Com.
|
2002.01
|
|
10
|
Φ219×8mm
|
Hengshui Jinghua Pipe Group Com.
|
1998.05
|
|
9
|
Φ165×8mm
|
Gulin Leipishan Prison
|
1996.01
|
|
8
|
Φ273×10mm
|
Shangdong Xintai Steel Tube Factory
|
1996.08
|
|
7
|
Φ165×8mm
|
Tangshan Steel Coil Plant
|
1995.06
|
|
6
|
Φ165×8mm
|
Wuxi Electric Furnace Factory
|
1995.11
|
|
5
|
Φ165×8mm
|
Cangzhou Steel Tube Factory
|
1995.11
|
|
4
|
Φ165×8mm
|
Hengshui Jinghua Pipe Group Com.
|
1995.11
|
|
3
|
Φ219×10mm
|
Hangzhou Heavy Pipe Making Factory
|
1995.09
|
|
2
|
Φ165×8mm
|
Shangdong Zhangdian Steel Tube Factory
|
1994.08
|
|
1
|
Φ219×8mm
|
WISCO Hankou Steel Rolling Factory
|
1992.05
|
Milling SAW
|
S/N
|
P/N
|
Specification
|
Client
|
Delivery
|
|
25
|
XFJ426
|
Φ426×16mm
|
Heibei Changfeng Group
|
2009.06
|
|
24
|
XFJ219
|
Φ219×12.7mm
|
Kinland Goup, Huzhou
|
2009.05
|
|
23
|
XFJ325
|
Φ325×12.7mm
|
Indonesia
|
2009.04
|
|
22
|
XFJ630
|
Φ630×19mm
|
Heibei Changfeng Group
|
2009.04
|
|
21
|
XFJ406
|
Φ406×12.7mm
|
Conares Metal Supply, UAE
|
2009.03
|
|
20
|
XFJ50
|
Φ50×3.75mm
|
Conares Metal Supply, UAE
|
2008.11
|
|
19
|
XFJ355
|
Φ355×16mm
|
Tangshan Wengfeng Group
|
2008.12
|
|
18
|
XFJ630
|
Φ630×19mm
|
Liaoyang Large Diameter Pipe Co., Ltd.
|
2008.09
|
|
17
|
XFJ610
|
Φ610×19mm
|
South Africa
|
2008.07
|
|
16
|
XFJ406
|
Φ406×12.7mm
|
Umran, Turkey
|
2008.02
|
|
15
|
XFJ219
|
Φ219×14mm
|
Tianjin Youfa Pipe Com. Ltd.
|
2007.10
|
|
14
|
XFJ325
|
Φ325×12.7mm
|
WISCO Hankou Steel Rolling Factory
|
2007.10
|
|
13
|
XFJ219
|
Φ219×12mm
|
Tianjin Lifengyuanda Pipe Com. Ltd.
|
2007.07
|
|
12
|
XFJ355
|
Φ355×12.7mm
|
JiangsuJiabao Technology Pipe Com. Ltd.
|
2007.09
|
|
11
|
XFJ400
|
□400×16mm
|
Tangshan Fengnan Shunjie Profile Ltd.
|
2007.07
|
|
10
|
XFJ355
|
□350×14mm
|
Shangdong Xinnuo Industrial Com. Ltd.
|
2007.06
|
|
9
|
XFJ355
|
Φ355×14mm
|
Tianjin Shuangjie Pipe Com. Ltd.
|
2007.07
|
|
8
|
XFJ400
|
□400×13.7mm
|
Shangdong Yuding Tube Com. Ltd.
|
2007.05
|
|
7
|
XFJ355
|
Φ355×14mm
|
Tianjin Lifengyuanda Steel Com. Ltd.
|
2007.03
|
|
6
|
XFJ610
|
Φ610×16mm
|
Guangzhou Juyi Steel Tube Com. Ltd.
|
2007.01
|
|
5
|
XFJ508
|
Φ508×16mm
|
JiangsuYulong Steel Tube Co. Ltd.
|
2007.01
|
|
4
|
XFJ400
|
Φ400×16mm
|
JiangsuYulong Steel Tube Co. Ltd.
|
2006.12
|
|
3
|
XFJ430
|
Φ430×16mm
|
Shangdong Steel Group
|
2006.11
|
|
2
|
XFJ355
|
Φ355×14mm
|
Wuxi FAST Tube Com. Ltd.
|
2006.08
|
|
1
|
XFJ508
|
Φ508×16mm
|
North China Petroleum Qingxian Pipe Ltd.
|
2005.08
|
