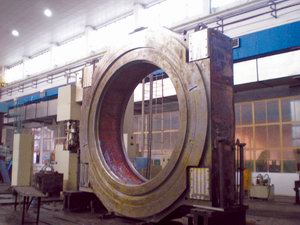

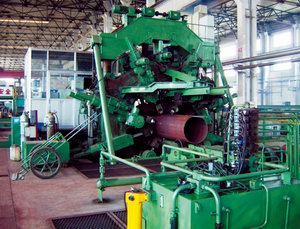

Tack Welding Stand
Here is the main parameters for a typical TW1524/135 Tacking Welding Stand:
The TW1524/135 tack welder is mainly for joint closing and pre-welding of the straight seam pipe. The max pipe diameter could be 1524mm, the max ength of pipe could be 13500mm including run-on plate. The TW1524/135 tack welder is used for the tack-welding plate in the downstream of Forming Press.
Main technical specifications
|
No.
|
Item
|
Value
|
Unit
|
Remark
|
|
1
|
Pipe diameter
|
φ508～1524
|
mm
|
|
|
2
|
Wall thickness
|
8～40
|
mm
|
X70
|
|
3
|
Pipe length
|
8000～13500
|
mm
|
Including run-on plate
|
|
4
|
Max. pipe weight
|
25000
|
kg
|
|
|
5
|
Pulling speed
|
1~7
|
m/min
|
|
|
6
|
Max. pulling force
|
300
|
kN
|
|
|
7
|
Total power
|
220
|
kW
|
Excluding the welding system
|
|
8
|
Weight of machine
|
250000
|
kg
|
Excluding the welding system
|
 |
 |
