Phamitech is the supplier for complete copper tube plant that can manufacture Inner Grooved Copper Tubes, Plain Copper Tubes, Capillary Copper Tubes, Pancake Coiled Copper Tubes, Plumbing Copper Tubes, Brass tubes, etc. We are in a position to supply all 3 main technologies of copper tube manufacturing - 1) continuous casting + PSW; 2) extrusion + Pilger; 3) HF welding.
2) Extrusion press + Pilger

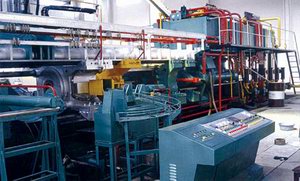

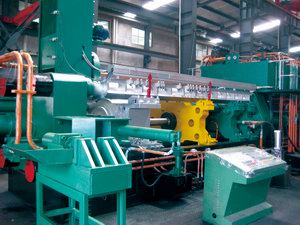

Extrusion Press
1. The machine has a four-column horizontal structure consisting of top-mounted oil tank, well-laid hydraulic piping and integrating electrical system;
2. Mobile beam can be located at four positions and centre-adjusted. Reasonable design of tools and moulds can greatly reduce production cost;
3. Different extruding process can be set to produce tubes having different bores with the way of following and fixed piecer;
4. Large flow rate plug-in valve system used in hydraulic unit results in a good seal and low temperature rise;
5 PLC from Japan Mitsubishi is of reliability and sensitivity;
Main technical parameters of XJ series copper extrusion press:
|
Model
|
Rated sys pressure
|
Rated extruding force
|
Center height of main unit
|
Dimension of
container
|
Main motor power
|
Overall dimension
|
|
XJ-300
|
21MPa
|
3000KN
|
700 mm
|
Φ55-Φ75×350
|
110 kw
|
5.5×2.1×2.3
|
|
XJ-500
|
21MPa
|
5000 KN
|
895 mm
|
Φ75-Φ95×400
|
150 kw
|
7×2.3×2.7
|
|
XJ-630
|
21MPa
|
6300 KN
|
945 mm
|
Φ85-Φ105×400
|
225 kw
|
7.5×2.3×2.8
|
|
XJ-800
|
21MPa
|
8000 KN
|
1045 mm
|
Φ105-Φ135×550
|
396 kw
|
10×2.3×3.1
|
|
XJ-1000
|
21MPa
|
10000 KN
|
1095 mm
|
Φ125-Φ145×600
|
396 kw
|
10.5×2.4×3.3
|
|
XJ-1250
|
21MPa
|
12500 KN
|
1185 mm
|
Φ135-Φ165×650
|
528 kw
|
12×2.5×3.4
|
|
XJ-1630
|
21MPa
|
16300 KN
|
1285 mm
|
Φ155-Φ205×750
|
1000 kw
|
13.5×4.3×4.1
|
|
XJ-1800
|
21MPa
|
18000 KN
|
1285 mm
|
Φ175-Φ225×800
|
1000 kw
|
14×4.3×4.1
|
|
XJ-2000
|
21MPa
|
20000 KN
|
1650 mm
|
Φ195-Φ245×850
|
1075 kw
|
15.5×4.5×4.3
|
|
XJ-2500
|
21MPa
|
25000 KN
|
1700 mm
|
Φ225-Φ265×900
|
1250 kw
|
18×4.8×4.5
|
|
XJ-3000
|
21MPa
|
30000 KN
|
1860 mm
|
Φ255-Φ305×1000
|
1500 kw
|
20×4.8×5.0
|
 |
 |
