COPPER TUBE PLANT> High Frequency Welded
High Frequency Welded
COPPER TUBE PLANT
Phamitech is the supplier for complete copper tube plant that can manufacture Inner Grooved Copper Tubes, Plain Copper Tubes, Capillary Copper Tubes, Pancake Coiled Copper Tubes, Plumbing Copper Tubes, Brass tubes, etc. We are in a position to supply all 3 main technologies of copper tube manufacturing - 1) continuous casting + PSW; 2) extrusion + Pilger; 3) HF welding.
 |
 |
3) HF WELDING
SPECIFICATIONS
Materials: Copper Coils
Max Coil Weight: 2 Tons
Coil ID Range: To be specified
Coil OD: To be specified
Tube OD Range: 12 mm to 32 mm
Tube Wall Thickness: Max. 2 mm
2-Stage Mill Speed: Max. 75/120 M/min with Flying Cut-Off Saw
Hand of Operations: To Be Specified
EQUIPMENT SUMMARY
Double Arm Uncoiler
Max. Load: 2 Ton on each Arm
Manual Operation
Portable Semi-Automatic Shear End Welder:
TIG Weld
Hydraulic Clamp
Pneumatic Shear
Automatic Weld with One Push Button
Rail-Tracks for Manual Push Away
Horizontal Accumulator:
Forming Mill:
1 – Strip Guide Unit
1– Idle leveler
4- Universal Driven Break Downs w/ synchronous height adjustment
3 – Universal Driven Fin Passes w/ synchronous height adjustment
8 – Idle Side Roll Stands
Shaft Size for Driven Stands: 40 mm
Shaft Size for Idle Stands: 30 mm
Motor Power: 50 HP Siemens Vector Motor

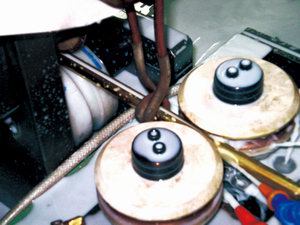

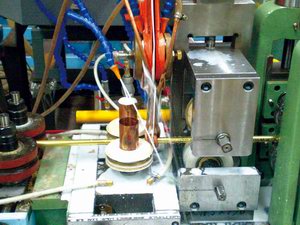

Weld Section
3 – Roll Weld Roll Box Tandem OD
Scarfing Unit
1 – Chip Collector
1– ID Bead Iron Roll
1 – GGP 150-0.6-H Solid State High Frequency Welder
Cooling Zone
Showing Cooling Trough 6 M in Length with 5 Guide Rolls
Sizing Mill
5 – Universal Driven Sizing Passes
5 – Idle Side Roll Stands
2 – Turks heads
Shaft Size for Driven Stands: 40 mm Shaft Size for Idle
Stands: 30 mm
Drive Motor: 50 HP Siemens Vector Motor
Cut-Off & Run Out Table
Flying Cut-Off Saw w/ Digital Length Control by Mitsubishi PLC or Equivalent Motorized Copper
Roller Run-out Conveyor
Single Dump Table
Electrical Controls
Water Resistant Electrical Cabinet
Siemens Vector Motors & Drives
Mitsubishi A-Series PLC
Fuji/Omron Electrical Components 10”
Color Touch Screen
