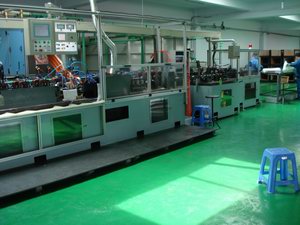

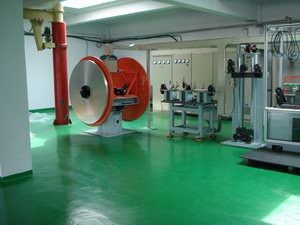

HF Aluminum Tube Mill
High Frequency Welded Aluminum Tube for Car Radiators



RadiatorsTechnical specifications

1. Max production speed: 125m/min;

2. Tube specification:
Oval aluminum tube
Height 16 ~32mm;
Width 1.5~3mm (adjustable as per the customer's requirement),
Length:300~8000mm;
Wall thickness:0.28~0.32mm;

3. Applicable material:4343(10%)+3003 or 3005(80%)+7072(10%)three-layer composite aluminum belt or pure aluminum belt;

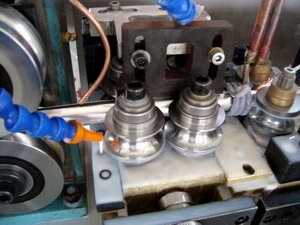

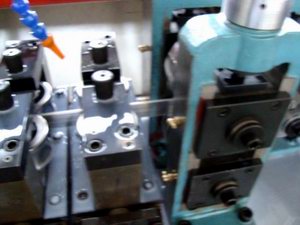

4. Forming style: Round tube forming + round tube welding + flattening;

5. Size(length x width x height)(mm): 2100x3500x5000;

6. Weight of mill: Gross weight 12 tons;

7. Installation capacity: 131KVA;

8. Energy consumption: Power: approx. 35 degrees(KW.h); compressed air: 0.6MPa, 2m3/min
(calculation condition: φ32 + production speed: 100 m/min);

9. Type of welder: Solid HF welder, 450Khz, installation capacity: 100KVA;

10. Driven style: Synchronous servo drive, separate structure;

11. Cut-off: On-line high speed cut-off;

12. Cooling method: welder →soft water +air cooler; rolls→ emulsion+ cooling tank + filter;

13. Tube quality: 1000mm Curvature≤1mm;Incision gradient≤0.2mm;Incision burr≤0.06mm; length tolerance≤±0.5mm;

14. Environmental indicator: noise (2m) ≤73db,dust:smoke and dust in welding is controllable, Zero emission of liquid contamination: recycling all water/oil/emulsion
