Combined Slitting Lines
 |
 |

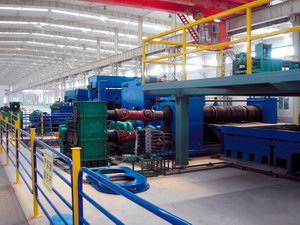

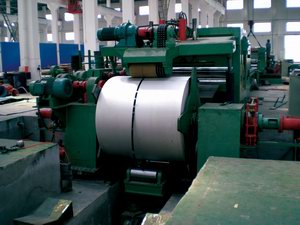

Combined slitting line
Consisting mainly of uncoiler, head straightener, shear, slitter, recoiler, leveler, cut to length, stacking, etc.
|
S/N
|
Material thickness (mm)
|
Material width (mm)
|
Speed (m/min)
|
Remarks
|
|
1
|
0.2-2
|
500-1600
|
0-30-40
|
6 layer
|
|
2
|
0.5-3
|
500-1800
|
0-30-40
|
4 layer
|
|
3
|
1-4
|
500-2000
|
0-30-40
|
4 layer
|
|
4
|
1.5-6
|
500-2200
|
0-27-40
|
4 layer
|
|
5
|
2-8
|
500-2500
|
0-27-40
|
4 layer
|
|
6
|
2-10
|
500-2500
|
0-27-40
|
4 layer
|
|
7
|
3-12
|
1000-2500
|
0-27-40
|
4 layer
|
|
8
|
4-16
|
1000-2500
|
0-26
|
4 layer
|
|
9
|
5-20
|
1800-2500
|
0-22
|
4 layer
|
|
10
|
6-22
|
1800-2500
|
0-22
|
4 layer
|
|
11
|
8-25
|
1800-2500
|
0-21
|
4 layer
|
|
12
|
8-30
|
1800-2500
|
0-17
|
4 layer
|
Typical Reference List for Slitting and Cut to Length Lines
|
S/N
|
Clients
|
Description
|
Qtty
|
|
1
|
Jiuquan Steel Group
|
(4-16)×1600mm cut to length line
|
1
|
|
2
|
Jiuquan Steel Group Lanzhou Logistics Co.
|
(2.5-14)x1700mm slitting & CTL combined line
|
1
|
|
3
|
Jiuquan Steel Group Huifeng Industrial Co.
|
(0.3-3)×1550mm stainless steel slitting line
(0.3-3)×1550mm S.S. cut to length line
(3-12)×1800mm slitting & CTL combined line
|
1
1
1
|
|
4
|
Nanjing Iron & Steel Union Co., Ltd.
|
(16-60) ×3400mm leveller
(10-45)×3400mm leveller
(4-16)×3500mm leveller
|
1
1
1
|
|
5
|
Sinosteel Xian Heavy Machinery Co.
|
(10-40)×3600mm leveller
|
1
|
|
6
|
Chongqing Steel Construction Engineering
|
(10-36)×2500mm leveller
(6-25)×2500mm cut to length line
|
1
1
|
|
7
|
Anshan Steel Construction Group Co.
|
(6-25)×2500mm leveller
|
1
|
|
8
|
Shanghai Zhenhua Port Machinery Co., Ltd.
|
(6-36)×3400mm leveller
(8-30)×3400mm leveller
(8-16)×800mm leveller
( 6-32) ×3200mm leveller
|
3
1
1
1
|
|
9
|
China National Minerals Co., Ltd.
|
(2.5-14)×2100mm S. steel cut to length line
|
3
|
|
10
|
Shougang Group Steel Distribution Co., Ltd.
|
(3-12)×2000mm cut to length line
|
1
|
|
11
|
Shougang Group Logistics Co., Ltd.
|
(4-16)×2250mm slitting & CTL combined line
|
1
|
|
12
|
Kunming Steel Group Co.
|
(2.5-7)×750mm slitting line
|
2
|
|
13
|
China No.3 Metallurgical Construction Co.,
|
(8-25)×2500mm leveller
|
1
|
|
14
|
Huaye Steel Processing Co., Ltd.
|
(10-25)×2500mm slitting combined line
|
2
|
|
15
|
Handan Steel Group Hengshui Sheet Co.,
|
(1-4)×2000mm slitting line
|
1
|
|
16
|
Shanghai Haixiang Metal Slitting Co.,Ltd.
|
(3-12)×1800mm slitting line
|
1
|
|
17
|
Shanghai Jiayi Cold Forming Co., Ltd.
|
(3-14)×1800mm slitting line
|
1
|
|
18
|
Shanghai Songgang Steel Warehousing Co
|
(4-16)×2300mm slitting combined line
(6-22)×2500mm slitting combined line
(10-25)×2500mm cut to length line
|
1
1
1
|
|
19
|
Uzbekistan
|
1.5～6×2000 Slitting machine(S. steel)
|
1
|
|
20
|
Indonesia
|
3.5～12.7×1600 Slitting machine
|
1
|
|
21
|
IGM-TRADE Ilija i Dr.D.O.O., Macedonia
|
(2-16)×2000mm slitting & combined line
|
1
|
