Radomes
 |
 |
|

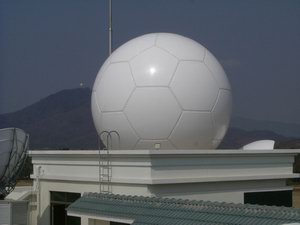

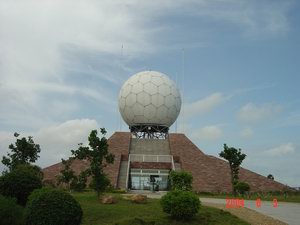

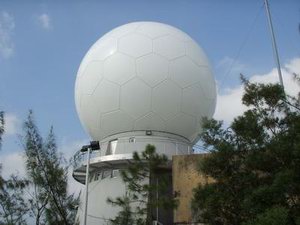

RADOME We design, manufacture and distribute radomes for various radars/antennas. Main sizes
Ф44m, Ф28m, Ф25m, Ф23m, Ф20m, Ф17m, Ф11.8m, Ф8.6m, Ф6.5m, Ф5.6m, Ф5.4m, Ф4.5m, Ф3m, etc.
Main applications
large ground-based radar, weather radar, coast warning radar, ship radar, vehicle radar, aircraft radar, etc.
Frequency
P-band, L-band, S-band, C-band, X-band, etc
Features
optimized electrical performance, high immunity to wind, beautiful appearance, easy installation, rain repellent, and salt atmosphere erosion-proof.
Markets
Besides majority of domestic market, our radomes have been installed in Romania, Singapore, Bangladesh, Iran, Mongolia, Malaysia, South Korea, Australia and Germany
|
||
| Model |
PHZH-LA-25
|
PHZH-LSX-23
|
PHZH-SA-17
|
PHZH-SA-11.8
|
PHZH-CA-11.8
|
|
Operating band |
L
|
L.S.X
|
S
|
S
|
C
|
| Diameter (m) |
25
|
23
|
17
|
11.8
|
11.8
|
| Structure |
Random, polygonal, foam-sandwich
|
Quadrilateral, foam-sandwich
|
Random, polygonal, foam-sandwich
|
Quasi-random, polygonal, foam-sanwich
|
Quasi-random, polygonal, foam-sanwich
|
| Tranmission loss, overall |
0.30dB
|
0.30dB
|
0.25dB
|
0.25dB
|
0.25dB
|
| Transmission loss, ind. panel |
0.20dB
|
0.20dB
|
0.20dB
|
0.10dB
|
0.10dB
|
| Transmittion loss, joint |
0.30dB
|
0.30dB
|
0.25dB
|
0.25dB
|
0.25dB
|
| Phase shift, individual panel |
±2 deg
|
±2 deg
|
±2 deg
|
±2 deg
|
±2 deg
|
| Boresight error, overall |
0.02 deg
|
0.02 deg
|
0.02 deg
|
0.02 deg
|
0.02 deg
|
| Sidelobe perturbation, at - 35 dB |
2.5 dB
|
2.5 dB
|
2.5 dB
|
2.5 dB
|
2.5 dB
|
| VSWR change |
10%
|
10%
|
10%
|
10%
|
10%
|
| Wind load, no damage |
67m/s
|
67m/s
|
67m/s
|
67m/s
|
67m/s
|
| Ambient temperature |
-50 to +60 deg C
|
-50/ +60 deg C
|
-50 to +60 deg C
|
-50 to +60 deg C
|
-50 to +60 deg C
|
| Relative humidity |
0~100%
|
0~100%
|
0~100%
|
0~100%
|
0~100%
|
| Warranty |
2 years
|
2 years
|
2 years
|
2 years
|
2 years
|
| Life span |
20 years
|
20 years
|
20 years
|
20 years
|
20 years
|
 |
 |
 |
 |
| Model |
PHZH-CA-8.6
|
PHZH-CA-7.2
|
PHZH-X-7.2
|
PHZH-X-4.5
|
PHZH-KU-3
|
|
Operating band |
C
|
C
|
X
|
X
|
KU
|
| Diameter (m) |
8.6
|
7.2
|
7.2
|
4.5
|
3
|
| Structure |
Quasi-random, polygonal, foam-sanwich
|
Quasi-random, polygonal, foam-sanwich
|
Quasi-random, polygonal, foam-sanwich
|
Random, polygonal, foam-sandwich
|
Integral, foam-sanwich
|
| Tranmission loss, overall |
0.30dB
|
0.30dB
|
0.40dB
|
0.40dB
|
0.60dB
|
| Transmission loss, ind. panel |
0.20dB
|
0.20dB
|
0.20dB
|
0.20dB
|
0.20dB
|
| Transmittion loss, joint |
0.30dB
|
0.30dB
|
0.30dB
|
0.30dB
|
0.30dB
|
| Phase shift, individual panel |
±2 deg
|
±2 deg
|
±2 deg
|
±2 deg
|
±2 deg
|
| Bosight error, overall |
0.02 deg
|
0.02 deg
|
0.02 deg
|
0.02 deg
|
0.02 deg
|
| Sidelobe perturbation, at - 35 dB |
2.5 dB
|
2.5 dB
|
2.5 dB
|
2.5 dB
|
2.5 dB
|
| VSWR change |
10%
|
10%
|
10%
|
10%
|
10%
|
| Wind load, no damage |
67m/s
|
67m/s
|
67m/s
|
67m/s
|
67m/s
|
| Ambient temperature |
-50 to +60 deg C
|
-50 to +60 deg C
|
-50 to +60 deg C
|
-50 to +60 deg C
|
-50 to +60 deg C
|
| Relative humidity |
0~100%
|
0~100%
|
0~100%
|
0~100%
|
0~100%
|
| Warranty |
2 years
|
2 years
|
2 years
|
2 years
|
2 years
|
| Life span |
20 years
|
20 years
|
20 years
|
20 years
|
20 years
|
