Magnetrons
Magnetron is a type of crossed-field oscillator valve, which is widely used in microwave system. Its main characteristic is high power, high efficiency, low working voltage, small size, and low cost etc.

Magnetron can be classified as the Continuous Wave Magnetron and the Pulse Magnetron. Continuous Wave Magnetron mainly used for microwave heating in industrial, agriculture, and mining etc, while pulse magnetron used for precision measurement in radar, airborne radar, and kinds of linear accelerator.

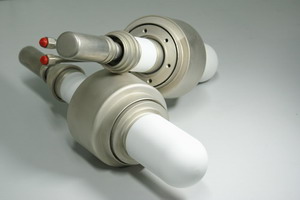

Magnetron MG5193
GLM5193 Pulse Magnetron is a high power microwave source specially designed and manufactured for electric linear accelerator, and has advantages such as high power, high efficiency and good stability etc. It is widely used in electric linear accelerator in medical treatment, security inspection, and flaw detection etc.

GLM5193 can directly replace( no need any adjustment or change) MG5193 in the application of kinds of linear accelerator.

Main parameters:
Tuning Frequency Range
29933002 Mhz
Output
2.6 Mw
Magnetic Field
Permanent Magnet
Magnetic Field Intensity
155025 Gauss
Cathode Heating Voltage
8.5 V
Cathode Heating Current
9 A
Max Start Current
20 A
Cathode Preheat Time
3min
Anode Voltage
45 Kv
Anode Current
110 A
Duty Cycle
0.001
Pulse Arising Speed
120 KV/Us
Cooling
Water Cooling
Outlet Temp
<50 deg C
Tuning Turns
4.75
Weight
About 8 Kg
Installation
Random

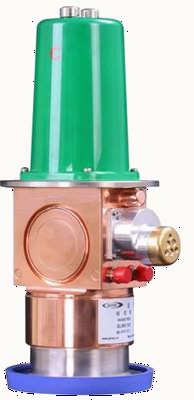

GLCWM-75L magnetron is a high power microwave source ,specially designed and manufactured for 75KW industrial heating equipment. It has fixed working frequency: 915MHz (or 896MHz, 922 MHz, and 929 MHz). The Anode is water cooling and the magnet field is electromagnet.

GLCWM-75L magnetron is widely used in industrial heating, roads repair, mining and waste water purification treatment, which has high efficiency (typical 88%), long life and is easy to use etc.

GLCWM-75L can directly replace CWM-75L in the application of kinds of microwave heating equipment.


75KW CW Magnetron

Some part numbers are not listed, please ask us for availability if not found here.
