Vacuum Capacitors
 |
 |
Vacuum Capacitors, Fixed and Variable
With ceramic envelope and vacuum dielectric, our capacitors offer such features as high withstand voltage, small size, high capacitance, stable and reliable properties. They are widely used as tuning components in HF and HV equipment for communication, broadcasting, industrial heating and so on.
We have a wide range of equivalents for Jennings part numbers and Comet part numbers. Listed is part of our vacuum capacitors. Please contact us if you can not find here what you need.
Models of vaccum capacitors
|
Our Part No.
|
Jennings Part No.
|
Comet Part No.
|
Types
|
|
CKY-1-30S
|
|
Ceramic, Fixed
|
|
|
CKT2/21/9
|
CKY-2-30S
|
|
Ceramic, Fixed
|
|
CKT3/21/10
|
CKY-3-30S
|
|
Ceramic, Fixed
|
|
CKT5/21/12
|
CKY-5-30S
|
|
Ceramic, Fixed
|
|
CKT6/25/47
|
CKT-6-0035
|
|
Ceramic, Fixed
|
|
CKT12/25/52
|
CKT-12-0035
|
|
Ceramic, Fixed
|
|
CKT18/25/67
|
CKT-18-0035
|
|
Ceramic, Fixed
|
|
CKT25/23/58
|
CKT1-25-0033
|
|
Ceramic, Fixed
|
|
CKT25/25/67
|
CKT-25-0035
|
|
Ceramic, Fixed
|
|
CKT50/23/68
|
CKT1-50-0033
|
|
Ceramic, Fixed
|
|
CKT50/25/77
|
CKT-50-0035
|
|
Ceramic, Fixed
|
|
CKT75/23/75
|
CKT1-75-0033
|
|
Ceramic, Fixed
|
|
CKT75/25/82
|
CKT-75-0035
|
|
Ceramic, Fixed
|
|
CKT80/10/35
|
JCSF-80-15S
|
|
Ceramic, Fixed
|
|
CKT/100/10/70
|
|
MC1C 100 E
|
Ceramic, Fixed
|
|
CKT100/23/80
|
CKT1-100-0033
|
|
Ceramic, Fixed
|
|
CKT100/25/87
|
CKT-100-0035
|
|
Ceramic, Fixed
|
|
CKT120/21/90
|
CKT-12-0030
|
|
Ceramic, Fixed
|
|
CKT150/21/90
|
CKT-150-0030
|
|
Ceramic, Fixed
|
|
CKT200/21/95
|
CKT-200-0030
|
|
Ceramic, Fixed
|
|
CKT250/10/70
|
JCS-250-15S
|
|
Ceramic, Fixed
|
|
CKT250/21/100
|
CKT-250-0030
|
|
Ceramic, Fixed
|
|
CKT450/32/170
|
CFHP-450-45S
|
CF3C 450 F
|
Ceramic, Fixed
|
|

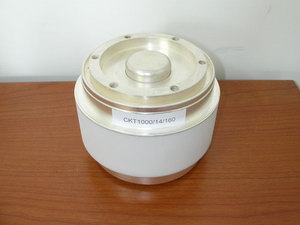

CKT1000/14/160
|
CFED-1000-20S
|
CF1C 1000 F
|
Ceramic, Fixed
|
|
CKT1000/35/350
|
CFHP-1000-50S
|
CV3C1000 E
|
Ceramic, Fixed
|
|
CKT2000/10/200
|
CFDP-2000-15S
|
CF1C 2000 F
|
Ceramic, Fixed
|
|
CKT2000/28/400
|
CFHM-2000-0040
|
|
Ceramic, Fixed
|
|
CKTB50/15/50
|
|
|
Ceramic, Variable
|
|
CKTB/50/25/32
|
|
CV2C-50E
|
Ceramic, Variable
|
|
CKTB250/35/220
|
CVHP-250-50S
|
|
Ceramic, Variable
|
|
CKTB400/5.5/80
|
CVDP-400-7.5S
|
CV1C 400 EW
|
Ceramic, Variable
|
|

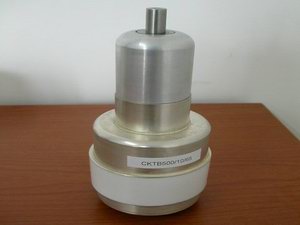

CKTB500/10/65
|
CSVF-500-0015
|
CV1C 500 EW
|
Ceramic, Variable
|
|
CKTB650/35/240
|
CVHP-650-55S
|
CV3C 650 E
|
Ceramic, Variable
|
|
CBTB750/25/220
|
CVHP-750-35S
|
|
Ceramic, Variable
|
|
CKTB750/28/220
|
CVFP-750-40S
|
CV2C 750 F
|
Ceramic, Variable
|
|
CKTB1000/10/80
|
CVDD-1000-15S
|
CV1C 1000 H
|
Ceramic, Variable
|
|
CKTB1000/21/215
|
CVFP-1000-30S
|
CV2C 1000 E
|
Ceramic, Variable
|
|
CKTB1000/24/170
|
CVHP-1000-40S
|
CV3A-1000 E
|
Ceramic, Variable
|
|
CKTB1000/3.5/80
|
CVCD-1000-5S
|
CV05C 1000 U
|
Ceramic, Variable
|
|
CKTB1500/24/215
|
CVFP-1500-40S/35S
|
CV2C 1500 E
|
Ceramic, Variable
|
|
CKTB1500/3.5/100
|
CVCD-1500-5S
|
CV05C 1500 EW
|
Ceramic, Variable
|
|
CKTB2000/10/200
|
CVEP-2000-15S
|
CV1C 2000 G
|
Ceramic, Variable
|
|
CKTB2000/25/220
|
CVFP-2000-35S
|
CV2A 2000 E
|
Ceramic, Variable
|
|
CKTB2300/10/160
|
CVDP-2300-15S
|
CV1C 2300 EW
|
Ceramic, Variable
|
|
CKTBS650/35/730
|
|
CV3W650 F
|
Ceramic, Variable, Water cooled
|
|
CKTBS650/38/840
|
CWV3-650-0150
|
|
Ceramic, Variable, Water cooled
|
|
CKTBS1000/35/750
|
|
CV3W 1000 JB
|
Ceramic, Variable, Water cooled
|
|
CKTBS1300/35/750
|
|
CV3W 1300 FB
|
Ceramic, Variable, Water cooled
|
|
CKTBS1600/28/790
|
CWV2-1600-0040
|
|
Ceramic, Variable, Water cooled
|
|
CKTBS1600/42/1000
|
CWV1-1600-0060
|
|
Ceramic, Variable, Water cooled
|
|
CKTBS2050/35/1000
|
CWV4-2050-0050
|
|
Ceramic, Variable, Water cooled
|
|
CODE:
|
CKT100/10/70
|
"C" - Capacitor, "K" - Vacuum, "T" - Ceramic, "1000"- Capacitance, "10" - peak HF working voltage, "70" - Max RF current
|
|
|
CKTB1000/21/215
|
"B" - Variable, others same as above
|
|
|
CKTBS1600/42/1000
|
"S" - Water cooling; others same as above
|
