Continous Galvanizing Line
 |
 |
It can be divided into cold rolled strip continuous galvanizing line and hot rolled strip continuous according to the different raw material.

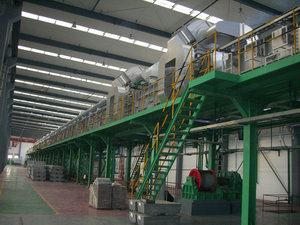

Cold Rolled Strip Continuous Galvanizing Line
|
Raw material
|
Strip spec: 0.18-1.2(1.5)mm x 600-1550mm, Cold rolled low carbon steel SPCC, SPCD, accords with JIS G 3141
|
|
Coating type
|
GI, GA, GF; weight: 60-300g/m2
|
|
Product quality
|
CQ, DQ, FH, accords with GB/T 2518 or JIS G 3302
|
|
Line speed
|
entry section 0-240mpm; process section 0-180mpm; exit 0-240mpm
|
|
Capacity
|
100,000 - 300,000 TPY
|
|
Energy saving
|
with heat recovery system from waste gas, SUNNY Patent
|
|
Annealing furnace
|
Radiant tubes heating, vertical or horizontal
|
|
Fuel type
|
Natural Gas, Liquefied Petroleum Gas, Mixed Gas, Coke Oven Gas, and Electricity
|
|
Welding machine
|
Automatic narrow lap seam welder
|
|
Degreasing style
|
Chemical degreasing+ electrolytic degreasing+ three stages water rinsing, vertical or horizontal
|
|
Zinc pot type
|
Ceramic induction zinc pot
|
|
Air wiper
|
SUNNY Patent
|
|
Skin pass mill
|
Four-High, wet, roll force 4000KN
|
|
Stretch leveler
|
Two bend units, one/two leveling unit
|
|
Passivation/anti-fingerprint
|
roll coating style + solidifying oven
|
|
Oiling style
|
Electrostatic oiling
|
|
Electric system
|
VVVF control system, SIEMENS elements
|
|
Automatic instrument
|
PLC, intelligent auto control system
|
 |
|

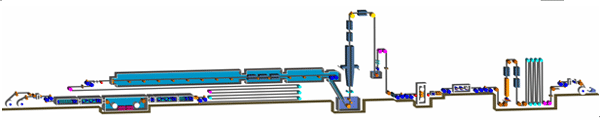

Layout Horizontal Continious Galvanizing Line |
 |
|

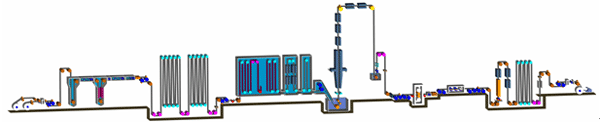

Layout Vertical Continious Galvanizing Line |

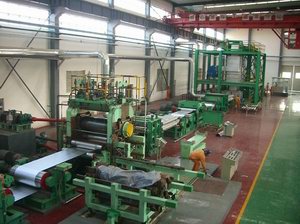

Hot Rolled Strip Continuous Galvanizing Line
|
Raw material
|
Strip spec: 1.5-4.0mm x 600-1550mm, hot rolled low carbon steel with slight oil
|
|
Coating type
|
GI, GA, GF; weight: 60-300g/m2
|
|
Product quality
|
GB/T 2518-2004 |
|
Line speed
|
entry section 0-130mpm; process section 0-100mpm; exit 0-130mpm
|
|
Capacity
|
200,000 - 400,000 TPY
|
|
Energy saving
|
with heat recovery system from waste gas, SUNNY Patent
|
|
Annealing furnace
|
Non-oxydizing direct fired furnace (NOF) +radian tubes (RTF) horizontal |
|
Fuel type
|
Natural Gas, Liquefied Petroleum Gas, Mixed Gas, Coke Oven Gas, and Electricity
|
|
Welding machine
|
Automatic double rolling lap seam welder
|
|
Degreasing style
|
Chemical degreasing+ electrolytic degreasing+ three stages water rinsing, vertical or horizontal
|
|
Zinc pot type
|
Ceramic induction zinc pot
|
|
Air wiper
|
SUNNY Patent
|
|
Skin pass mill
|
Four-High, wet, roll force 4000-6000KN
|
|
Stretch leveler
|
Two bend units, one straighten unit
|
|
Passivation/anti-fingerprint
|
roll coating style + solidifying oven
|
|
Oiling style
|
Electrostatic oiling
|
|
Electric system
|
VVVF control system, SIEMENS elements
|
|
Automatic instrument
|
PLC, intelligent auto control system
|
